SONIC BOOM ULTRA
Power, perfectly controlled.
320W rated output, 500W peak power, and a true 3-way system bring scale, clarity, and detail together.
- 320W Rated Output
- 500W Peak Power
- True 3-Way Sound
- Up to 24 Hours

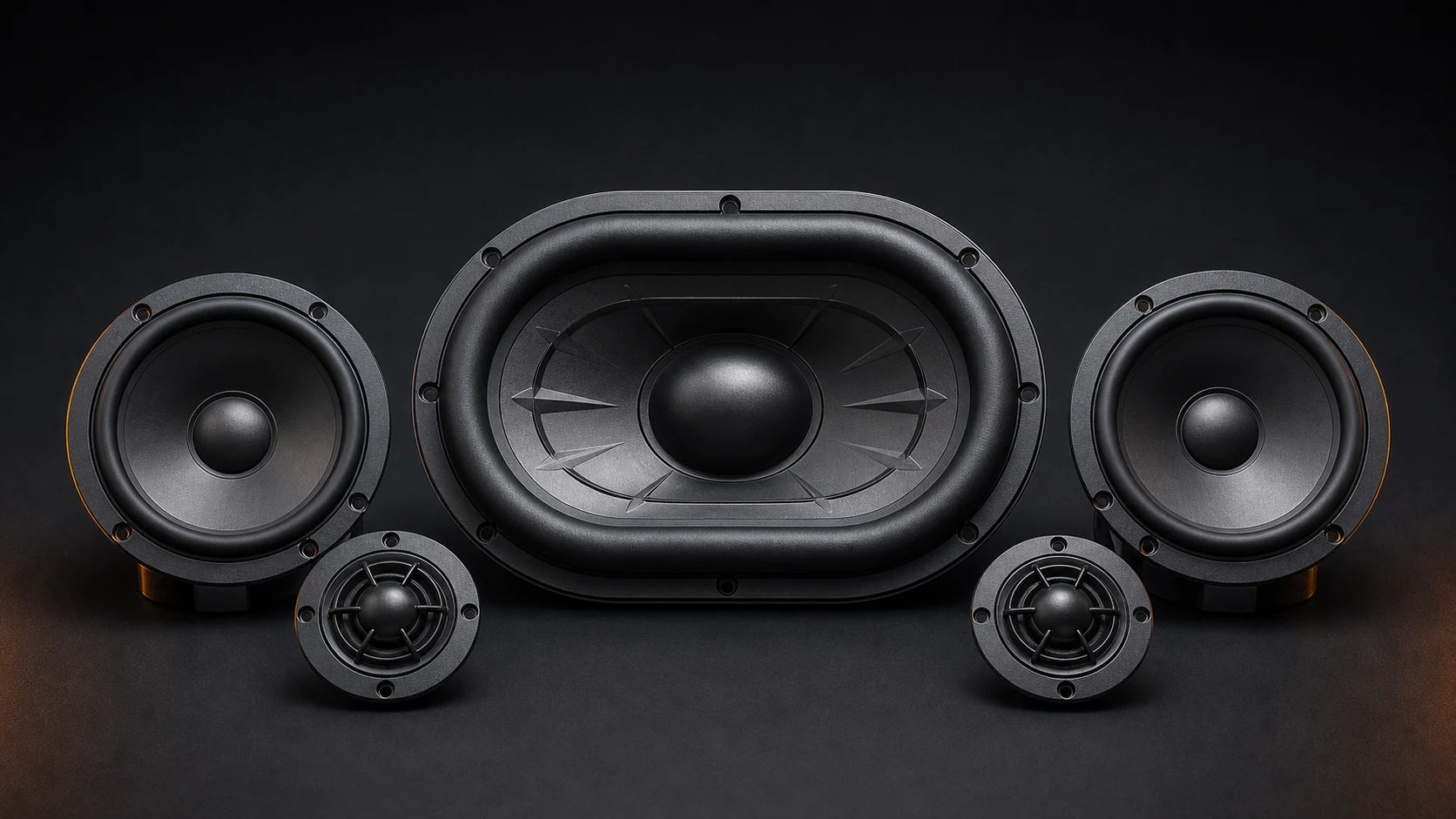

Three bands. One seamless sound.
A 200W woofer, dual 40W midrange drivers, and dual 20W tweeters give every frequency its own space.
- 200W Bass
- 2×40W Midrange
- 2×20W Treble
Natural vocals.
Open, refined treble.
Bass with depth and control.

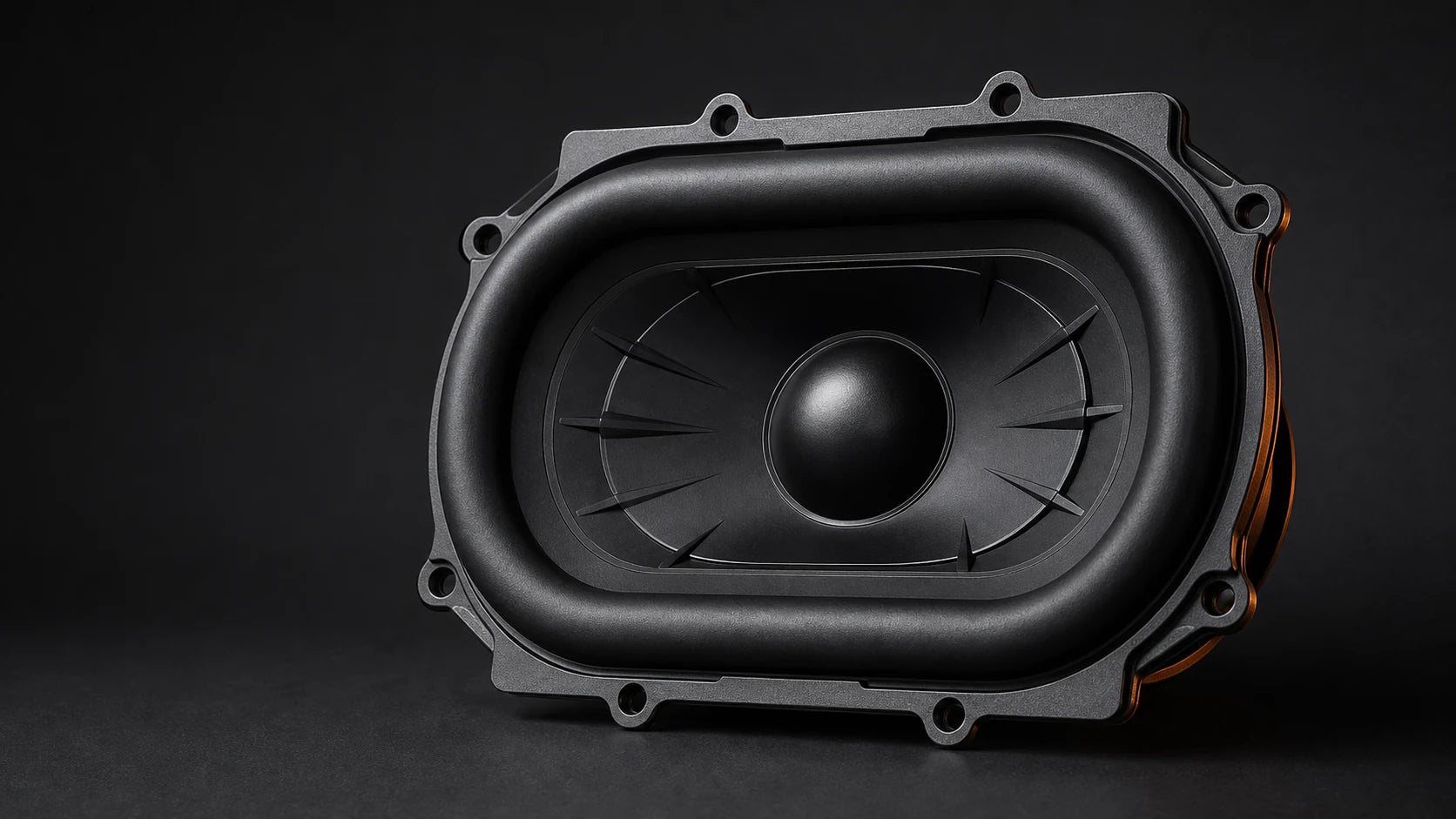

A custom 230 × 165 mm racetrack woofer delivers greater weight, depth, and definition.
Sound that stays clear.
Powerful at every level. Composed at every volume.

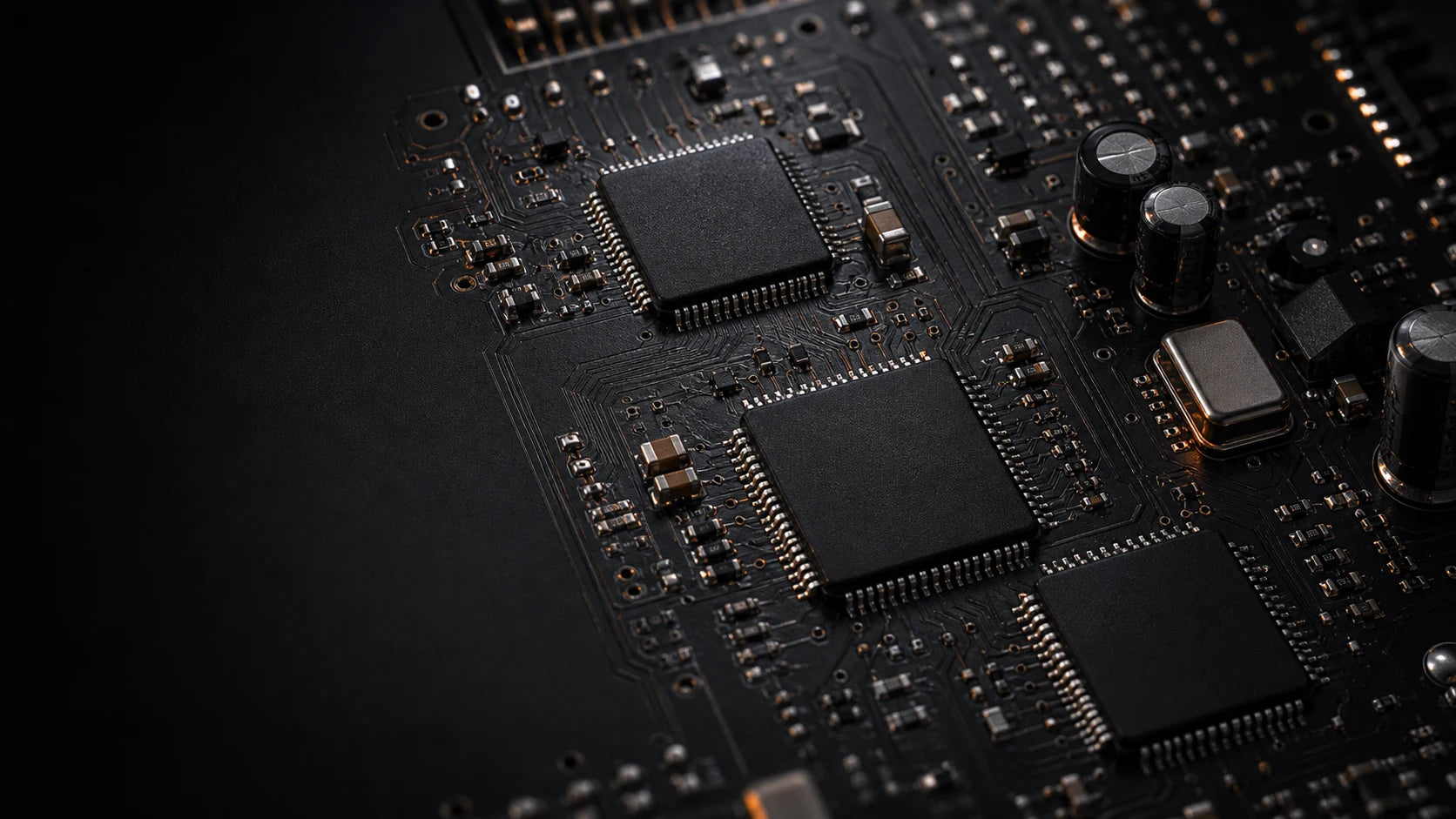

Engineered from signal to sound.
The ATS2853C controller, BP1048B2 DSP, and dual TI TPA3255 amplifiers deliver stable power and precise acoustic control.
- ATS2853C
- BP1048B2 DSP
- Dual TI TPA3255

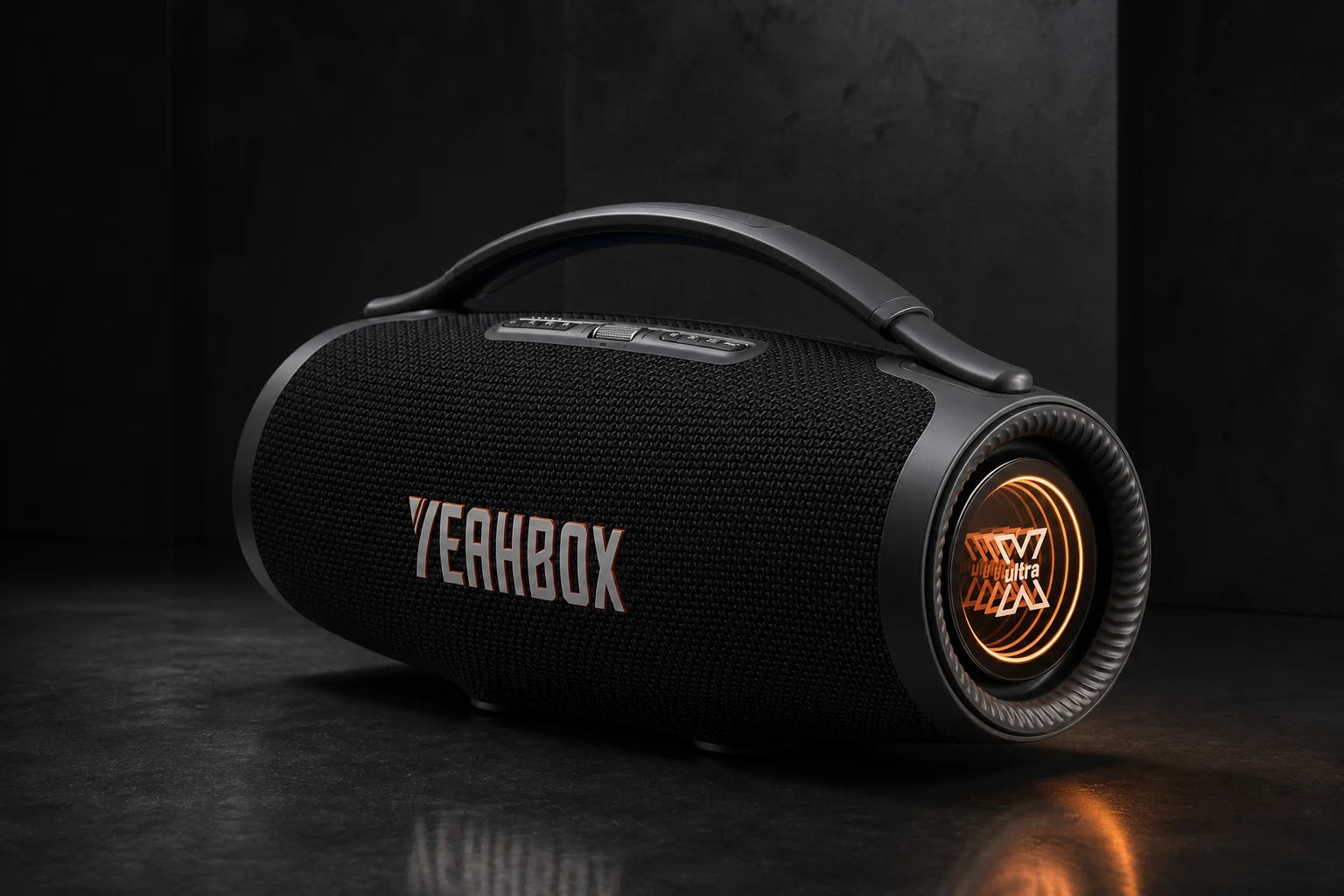

See the rhythm.

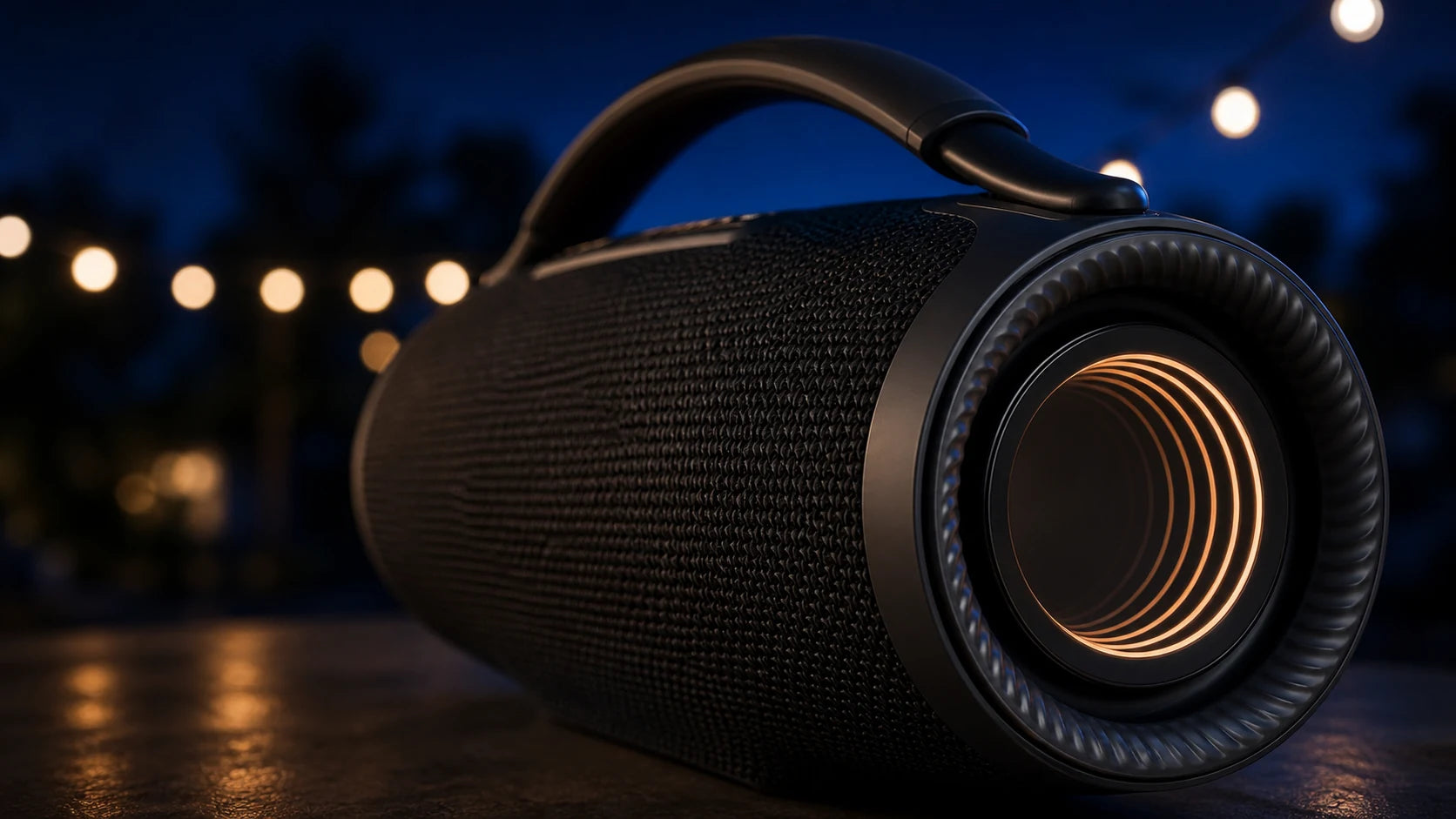

Dual infinity-mirror passive radiators reinforce the bass while responsive lighting moves with the music.
Play longer. Recharge faster.
A 166.5Wh battery delivers up to 24 hours of playback, with charging at up to 60W.
- 166.5Wh Battery
- Up to 24 Hours
- Up to 60W Charging
One speaker. Every source.
Connect through Bluetooth 6.0, USB, microSD, AUX, OTG, TWS, or HDMI ARC.
- Bluetooth 6.0
- USB
- microSD
- AUX
- OTG
- TWS
- HDMI ARC
Beyond loud.
Power you can feel. Detail you can hear.
Sound Your Passion.
Technical details
Specifications
Product & Processing
- Product Name
- Sonic Boom Ultra
- Bluetooth Pairing Name
- Sonic Boom Ultra
- Bluetooth Solution
- ATS2853C
- DSP
- BP1048B2
- Amplifiers
- Dual TI TPA3255
- Digital Encoder
- 12-Bit, Up to 4,096 Levels
- Encoder Response
- Below 1 ms
Acoustic System
- Rated Output
- 320W
- Peak Output
- 500W
- Woofer
- 1×230 × 165 mm, 200W
- Midrange
- 2×110 mm, 40W Each
- Tweeters
- 2×41 mm, 20W Each
- Acoustic System
- True 3-Way, 5 Active Drivers
- Passive Radiators
- 2 RGB Infinity-Mirror Passive Radiators
- Frequency Response
- 40Hz–20kHz
Battery & Charging
- Battery
- 18.5V/9,000mAh, 166.5Wh
- Cell-Equivalent Capacity
- 45,000mAh at 3.7V
- Charging Profiles
- 5V/3A, 9V/2A, 12V/1.5A, 15V/2A, 20V/3A
- Maximum Charging Power
- 60W
- Charging Time
- Approximately 3 Hours 40 Minutes
- Playback
- Up to 24 Hours at Approximately 65dB SPL
- Approximately 30% Volume
- Up to 24 Hours
- Approximately 50% Volume
- Up to 10 Hours
- 100% Volume
- Approximately 3.5 Hours
Actual battery life varies with volume, audio content, bass intensity, lighting mode, connection type, battery condition, and ambient temperature.
Connectivity & Media
- Bluetooth Version
- Bluetooth 6.0
- Bluetooth Range
- ≥18 m in Open Areas
- Formats
- WAV, FLAC, APE, MP3
- Modes
- Bluetooth, USB, microSD, AUX, OTG, TWS, HDMI ARC
Physical
- Dimensions
- 595 × 248 × 313 mm
- Weight
- 10.56 kg
